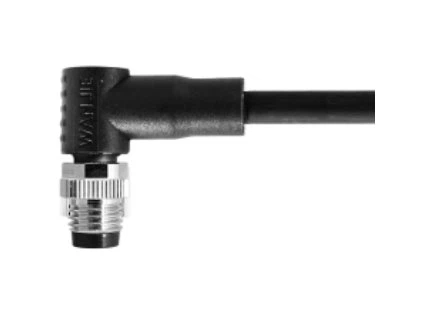

M8 Txiv neej Txoj Cai Lub Taub Hau UnShield A-Coding 4PIN PUR 2.0M M8X1.0

Connector Series: M8

Poj niam txiv neej: Txiv neej

Coding: A, B

Locking Hom: Kho Screw

Mounting hom: Angled

Tshooj No: M08-A04-RA0-M02-BCR-200N

X: Ib coding

**: 04 pin

RA0:0=Unshielded,2=Pull Shield,1=Ground

BCC =Cable Jacket PVC (Rau Moulded Cable)

BCR=Cable Jacket PUR (Rau Moulded Cable)

XXX:050=0.5M, 100=1M, 10M=10M...(Length)



Technical Data

Qauv: IEC61076-2-104

Ambient Kub: -25 ° C ~ +80 degree

Rwb thaiv tsev Resistance: Ntau dua los yog sib npaug rau 100MΩ

Tiv tauj Resistance: Tsawg dua los yog sib npaug rau 5mΩ

IP chav kawm: IP67

Mating Endurance: >100 Mating Cycles



Cov ntaub ntawv

Connector Carriers: PA

Connector Contacts: Copper Alloy Nrog Kub Plated

Connector Txiv ntseej / Ntsia Hlau: Copper Alloy Nrog Nickel Plated

Connector Overmold: TPU

Shielding: Unshielded / shielded



Hluav taws xob cov ntaub ntawv & Mechanical hnub

Tus pin: 4 Pins

Rated tam sim no: 3A

Voltage AC / DC: 50V / 60V

Hlau Ntau Yam AWG / mm²: 24 / 0.25
