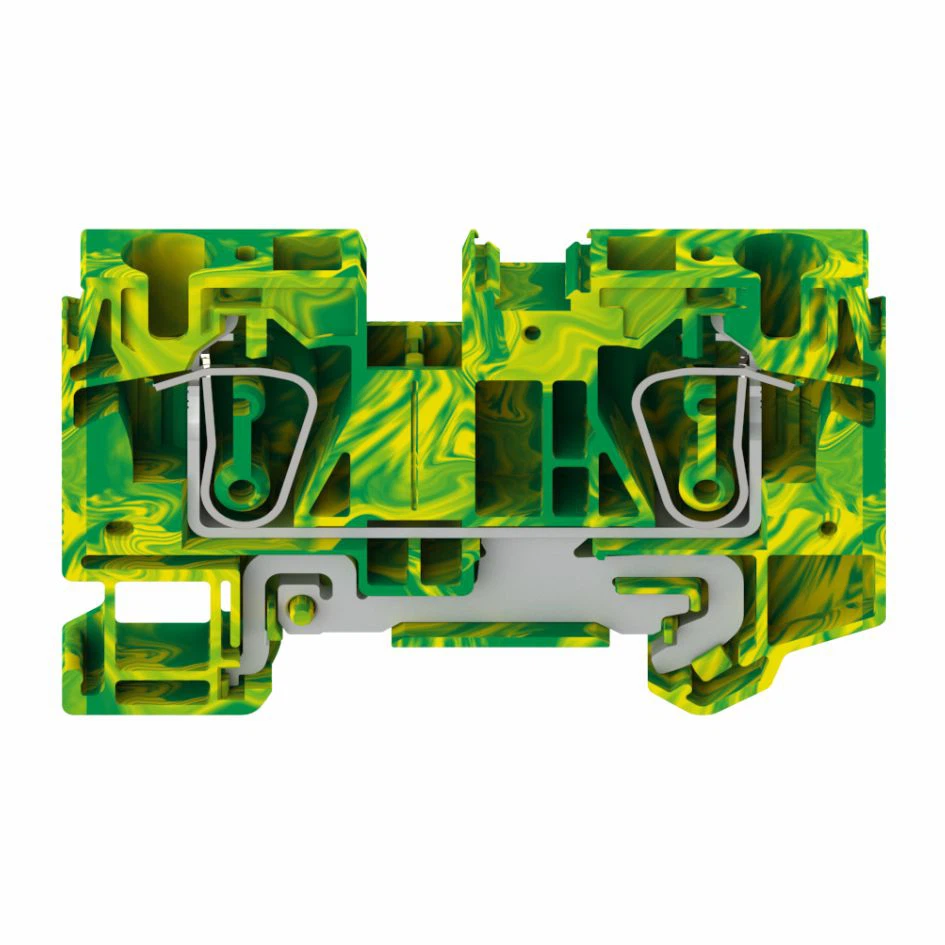

Pub Los ntawm av SPRING CAGE Connector 6.0 Mm2

UL (1059)

Siv Pawg BCD

Rated Voltage [V] / / /

Rated Tam sim no [A] // / /

Ua hauj lwm voltage /

Hlau Ntau 24-8AWG



IEC (60947-7-2)

Overvoltage qeb III

Chav Kawm 3

Rated voltage /

Rated Tam sim no /

Impulse withstand voltage 8KV



Tus neeg xyuas pib hla ntu

Cov av 0.2-10mm²

Flexible 0.2-6mm²

Flexible nrog ferrule 0.25-6mm²



Khoom siv

Cov khoom siv rwb thaiv tsev PA66

Nplaim hluav taws xob ntsuas UL94V-0

Conductor Material Copper alloy

Plating ntawm tus neeg xyuas pib nto Sn plated



Lwm cov ntaub ntawv

Ntev / Qhov siab / Thickness [mm] 69.5 / 42.6 / 8.2

Cov ntsiab lus txuas 2

Stripping Length [mm] 10-12

Hom rail DIN 35

Ntsia Hlau / Torque (Max) [Nm] /

Ua haujlwm kub [degree] -40 ~ +105
