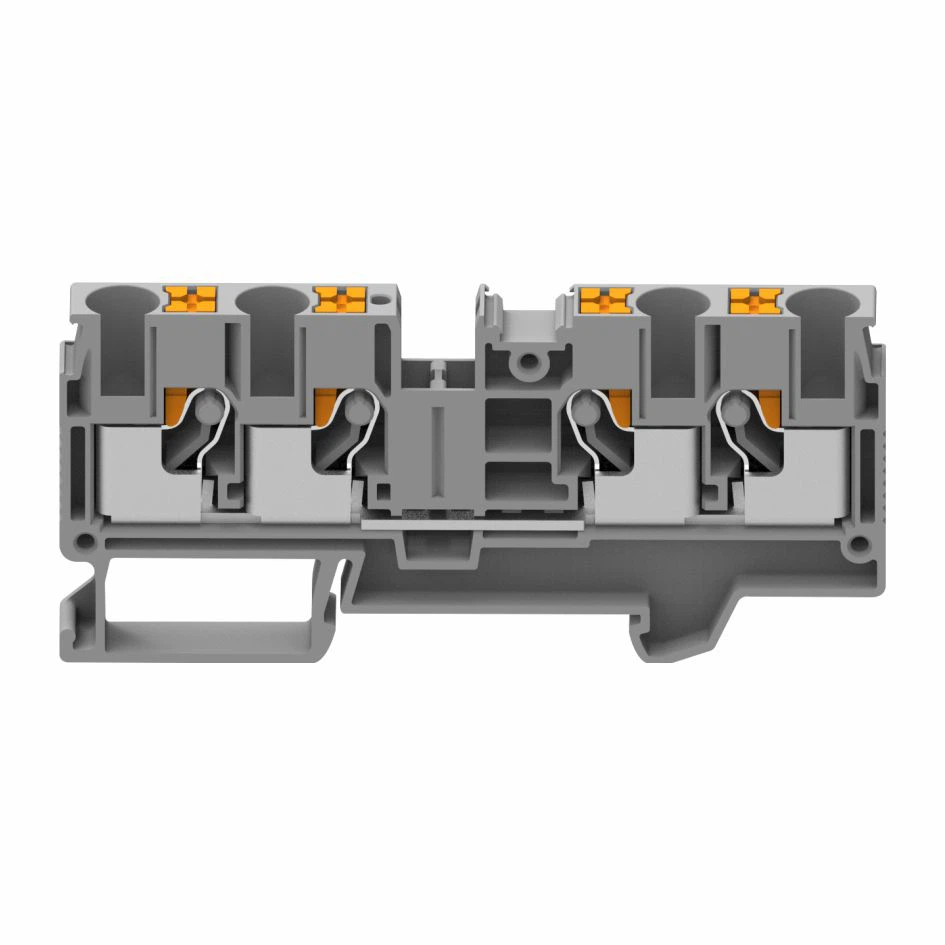

Pub Los ntawm PUSH IN Connector 6.0 Mm2 Ob Hauv Ob Tawm

UL (1059)

Siv Pawg BCD

Rated Voltage [V] 600 600 600

Rated Tam sim no [A] 40 40 5

Nrog Voltage 2200V / 1min

Hlau Ntau 20-8AWG



IEC (60947-7-1)

Overvoltage qeb III

Chav Kawm 3

Rated voltage 1000V

Rated Tam sim no 41A

Impulse withstand voltage 8KV



Tus neeg xyuas pib hla ntu

Cov av 0.5-10mm²

Flexible 0.5-6mm²

Flexible nrog ferrule 0.5-6mm²



Khoom siv

Cov khoom siv rwb thaiv tsev PA66

Nplaim hluav taws xob ntsuas UL94V-0

Conductor Material Copper alloy

Plating ntawm tus neeg xyuas pib nto Sn plated



Lwm cov ntaub ntawv

Ntev / Qhov siab / Thickness [mm] 90.6 / 42.3 / 8.2

Cov ntsiab lus txuas 4

Stripping Length [mm] 10-12

Hom rail DIN 35

Ntsia Hlau / Torque (Max) [Nm] /

Ua haujlwm kub [degree] -40 ~ +105
