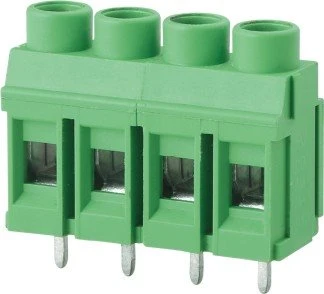

High Tam sim no Terminal Block 15.0mm

UL / CUL

Siv Pawg BCD

Tus nqi Voltage [V] 600 600 600

Rated Tam sim no [A] 115 115 5

Wire Range [AWG] 20 ~ 2

Dielectric Voltage -Nrog 2.2KV



IEC

Overvoltage Qeb III III II

Chav Kawm Kab Mob 3 2 2

Rated Voltage [V] 1000 1000 1000

Rated Tam sim no [A] 125 125 125

Impulse withstand voltage [KV] 8 8 8

Tus neeg xyuas pib hla ntu [mm²] 0.5 ~ 35



Khoom siv

Cov khoom siv rwb thaiv tsev PA66

Flammability ntsuam xyuas UL94V-0

Conductor Material Copper alloy

Plating ntawm tus neeg xyuas pib nto Sn plated



Lwm cov ntaub ntawv

Pitch/Poles [mm]/[P] 15.0 / 1 ~ 12

Stripping Length [mm] 17 ~ 18

Ntsia Hlau / Torque (Max) [Nm] M5 / 2.0

Ua haujlwm kub [degree] -40 ~ +105

Soldering kub 250℃/ 5S

Pin qhov ntev (mm) 1.2 * 1.2

PCB qhov taub [mm] Ø2.0
