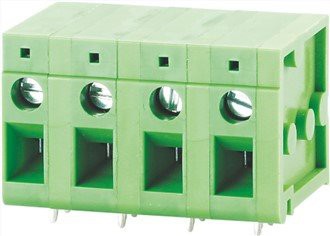

Lub kaum sab xis Terminal Connector 5.0mm Pitch

UL / CUL

Siv Pawg BCD

Tus nqi Voltage [V] 300 - 300

Rated Tam sim no [A] 8 - 8

Wire Range [AWG] 26 ~ 14

Dielectric Voltage -Nrog 1.6KV



IEC

Overvoltage Qeb III III II

Chav Kawm Kab Mob 3 2 2

Rated Voltage [V] 250 400 630

Rated Tam sim no [A] 18 18 18

Impulse withstand voltage [KV] 4 4 4

Tus neeg xyuas pib hla ntu [mm²] 0.5 ~ 2.5



Khoom siv

Cov khoom siv rwb thaiv tsev PA66

Flammability ntsuam xyuas UL94V-0

Conductor Material Copper alloy

Plating ntawm tus neeg xyuas pib nto Sn plated



Lwm cov ntaub ntawv

Pitch/Poles [mm]/[P] 5.0/2 ~ 24

Stripping Ntev [mm] 6 ~ 7

Ntsia Hlau / Torque (Max) [Nm] M2.5 / 0.25

Ua haujlwm kub [degree] -40 ~ +105

Soldering kub 250℃/ 5S

Pin qhov ntev (mm) 0.6 * 1.0

PCB qhov taub [mm] Ø1.4
